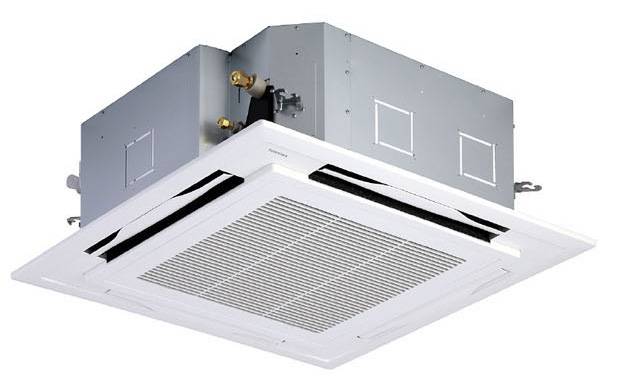

4-WAY CASSETTE RM_UT

Eurovent

4-way cassette is designed to provide uniform air distribution and total comfort. It is the ideal […]

SCOP MAX

5,22

Capacity

5kW – 16kW

Operation

-27°C/+52°C (SDI) -15°C/+46°C (DI)

Warranty

5 years

SCOP MAX

5,22

Capacity

5kW – 16kW

Operation

-27°C/+52°C (SDI) -15°C/+46°C (DI)

Warranty

5 years

4-way cassette is designed to provide uniform air distribution and total comfort. It is the ideal solution for small commercial application.

Characteristics

Reliability

Reliability

  • Self-cleaning function and Ag-ion tip for anti-mould in drain cap
  • Built-in high-lift drain pump
Comfort

Comfort

  • Two louvers shape option: straight flow louver and wide flow louver; optimum air distribution
  • Individual setting of louver position: 3 different swing mode: standard, diagonally, opposite, turn around
  • Wide air flow in all directions
Easy Installation

Easy Installation

  • Compact chassis with only 256mm height (sizes 5 and 8)
  • Light-weight unit, for easy and quick installation

Technical Information

PERFORMANCE DATA WITH SUPER DIGITAL INVERTER
-
-
-
-
-
-
-
-
-
OUTDOOR UNIT
RAV-GP561ATP-E
RAV-GP801AT-E
RAV-GP1101AT-E
RAV-GP1101AT8-E
RAV-GP1401AT-E
RAV-GP1401AT8-E
RAV-GP1601AT8-E
-
-
INDOOR UNIT
RAV-RM561UTP-E
RAV-RM801UTP-E
RAV-RM1101UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
RAV-RM1401UTP-E
RAV-RM1601UTP-E
-
-
Cooling capacity kW
5,0
7,1
10,0
10,0
12,5
12,5
14,0
-
-
Cooling range (min. - max.) kW
1,2-5,6
1,9 - 8,0
3,1 - 12,0
2,6 - 12,0
3,1 - 14,0
2,6 - 14,0
2,6 - 16,0
-
-
EER
4,10
4,49
4,69
4,31
3,96
3,65
3,23
-
-
SEER
7,61
8,80
8,65
7,1
8,15
7,01
6,72
-
-
Energy efficiency class C
A++
A+++
A+++
A++
TBD
TBD
TBD
-
-
Seasonal electricity consumption kWh/a C
230
282
405
492
920
1.069
1.249
-
-
Heating capacity kW
5,6
8,0
11,2
11,2
14,0
14,0
16,0
-
-
Heating range (min. - max.) kW
0,9-8,1
1,3 - 11,3
2,6 - 13,0
2,4 - 15,6
2,6 - 16,5
2,4 - 18,0
2,4 - 19,0
-
-
COP
4,31
4,52
4,79
4,65
4,36
4,11
3,74
-
-
SCOP (Average)
4,96
5,22
4,73
4,36
4,72
4,36
4,36
-
-
Energy efficiency class (Average) H
A++
A+++
A++
A+
TBD
TBD
TBD
-
-
Seasonal electricity consumption kWh/a H
1.071
1.367
2.719
3.047
2.844
3.049
3.049
-
-
-
-
-
-
-
-
-
-
-
PERFORMANCE DATA WITH DIGITAL INVERTER
-
-
-
-
-
-
-
-
-
OUTDOOR UNIT
RAV-GM561ATP-E
RAV-GM801ATP-E
RAV-GM901ATP-E
RAV-GM1101ATP-E
RAV-GM1101AT8P-E
RAV-GM1401ATP-E
RAV-GM1401AT8P-E
RAV-GM1601ATP-E
RAV-GM1601AT8P-E
INDOOR UNIT
RAV-RM561UTP-E
RAV-RM801UTP-E
RAV-RM901UTP-E
RAV-RM1101UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
RAV-RM1401UTP-E
RAV-RM1601UTP-E
RAV-RM1601UTP-E
Cooling capacity kW
5,0
6,7
8,0
9,5
9,5
12,0
12,0
14,0
14,0
Cooling range (min. - max.) kW
1,5 - 5,6
1,5 - 8,0
1,9 - 8,8
3,0 - 11,2
3,0 - 11,2
3,0 - 13,2
3,0 - 13,2
3,0 - 16,0
3,0 - 16,0
EER
3,21
3,02
3,30
3,31
3,31
2,8
2,8
3,12
3,12
SEER
6,34
5,81
7,00
6,15
6,15
5,71
5,71
6,3
6,3
Energy efficiency class C
A++
A+
A++
A++
A++
A+
A+
TBD
TBD
Seasonal electricity consumption kWh/a C
276
403
389
540
540
736
736
1.033
1.033
Heating capacity kW
5,3
7,7
9,0
11,2
11,2
13,0
13,0
16,0
16,0
Heating range (min. - max.) kW
1,5 - 6,3
1,5 - 9,0
1,6 - 9,9
3,0 - 13,0
3,0 - 13,0
3,0 - 16,0
3,0 - 16,0
3,0 - 18,0
3,0 - 18,0
COP W/W
3,90
3,62
3,72
3,82
3,82
3,76
3,76
3,61
3,61
SCOP (Average)
4,60
4,42
4,60
4,28
4,28
4,29
4,29
4,35
4,35
Energy efficiency class (Average) H
A++
A+
A++
A+
A+
A+
A+
TBD
TBD
Seasonal electricity consumption kWh/a H
852
1.615
1.917
2.615
2.615
2.611
2.611
2.575
2.575
-
-
-
-
-
-
-
-
-
PHYSICAL DATA INDOOR
-
-
-
-
-
-
-
-
-
INDOOR UNITS
RAV-RM561UTP-E
RAV-RM801UTP-E
RAV-GM901UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
RAV-RM1601UTP-E
-
-
-
Sound pressure level (H/M/L) dB(A)
32-29-28
35-31-28
40-36-33
43-38-33
44-38-34
45-40-36
-
-
-
Dimensions (HxWxD) mm
256 x 840 x 840
256 x 840 x 840
319 x 840 x 840
319 x 840 x 840
319 x 840 x 840
319 x 840 x 840
-
-
-
Weight kg
20
20
24
24
24
24
-
-
-
Panel dimensions (HxWxD) mm
30 x 950 x 950
30 x 950 x 950
30 x 950 x 950
30 x 950 x 950
30 x 950 x 950
30 x 950 x 950
-
-
-
Panel weight kg
4,2
4,2
4,2
4,2
4,2
4,2
-
-
-
