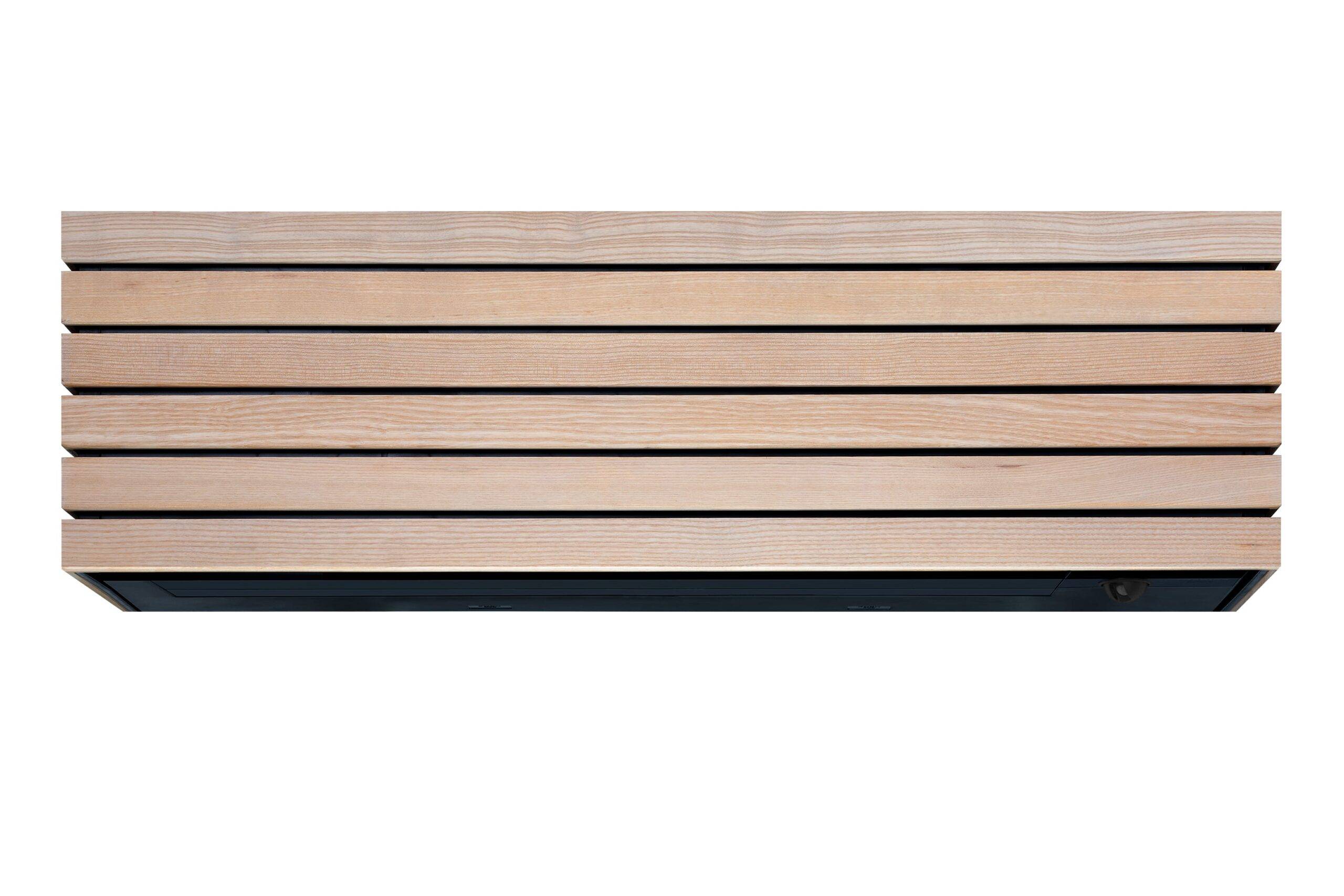

Daiseikai 10_Wood

Breathe Easy with Nature's Comfort: Introducing Daiseikai™10

Design Award 2024
R32
Eurovent

EFFICIENCY

SEER up to10.70 | SCOP up to 6.50

ENERGY CLASS

Α+++ in cooling | Α+++ in heating, warmer zone

BTU/h

10, 13 & 18.000

Wi Fi

Activated

EFFICIENCY

SEER up to10.70 | SCOP up to 6.50

ENERGY CLASS

Α+++ in cooling | Α+++ in heating, warmer zone

BTU/h

10, 13 & 18.000

Wi Fi

Activated

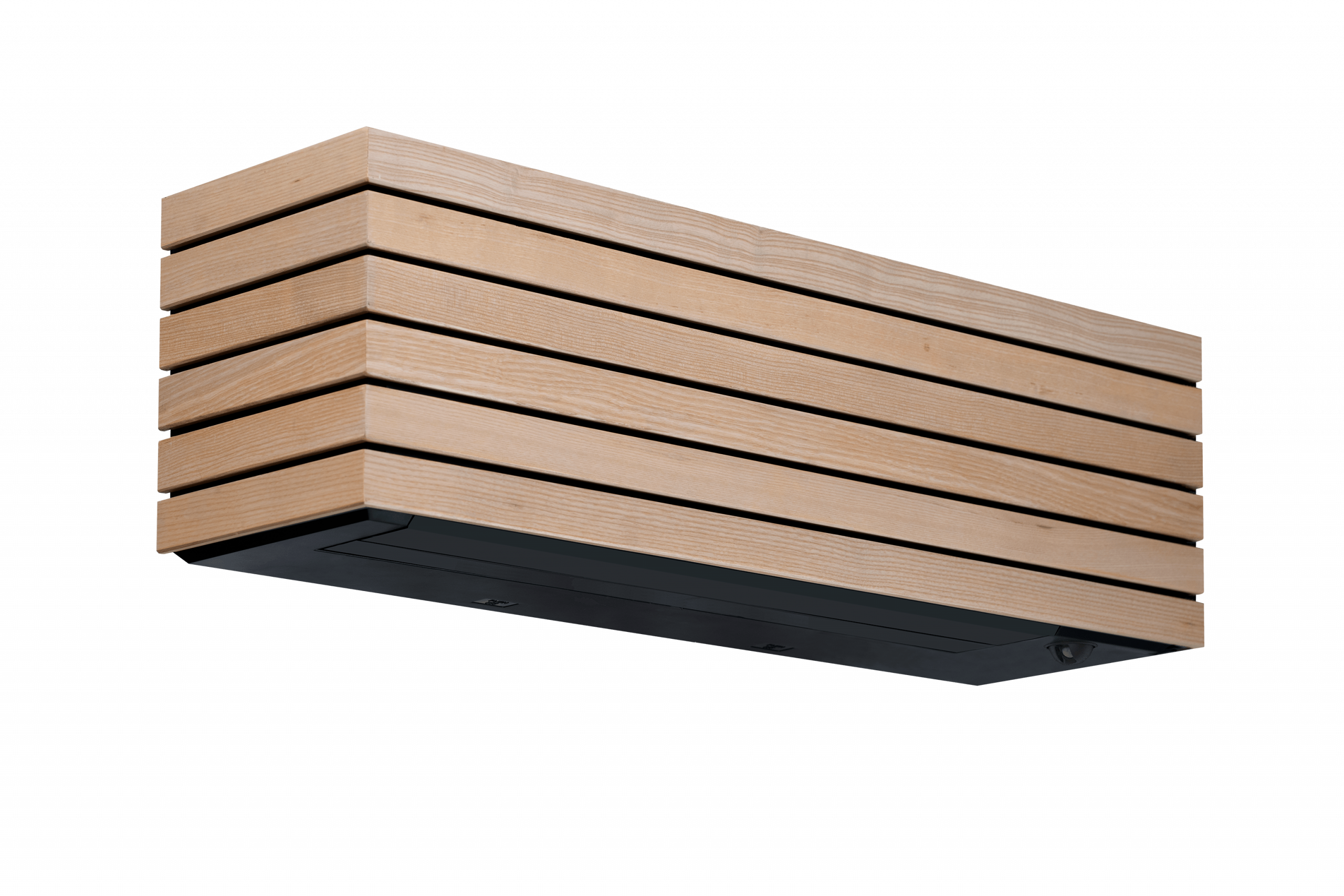

  • Sustainable Cool & Warmth | Choose classic or wooden designs made from recycled materials
  • High Efficiency | Save energy with SEER up to 10.7, SCOP up to 5.3 and energy class A+++/A+++
  • Unwavering Reliability | Enjoy cool summers and warm winters regardless of weather conditions, as the unit operates seamlessly over a wide range of outdoor temperatures from -20°C to +46°C

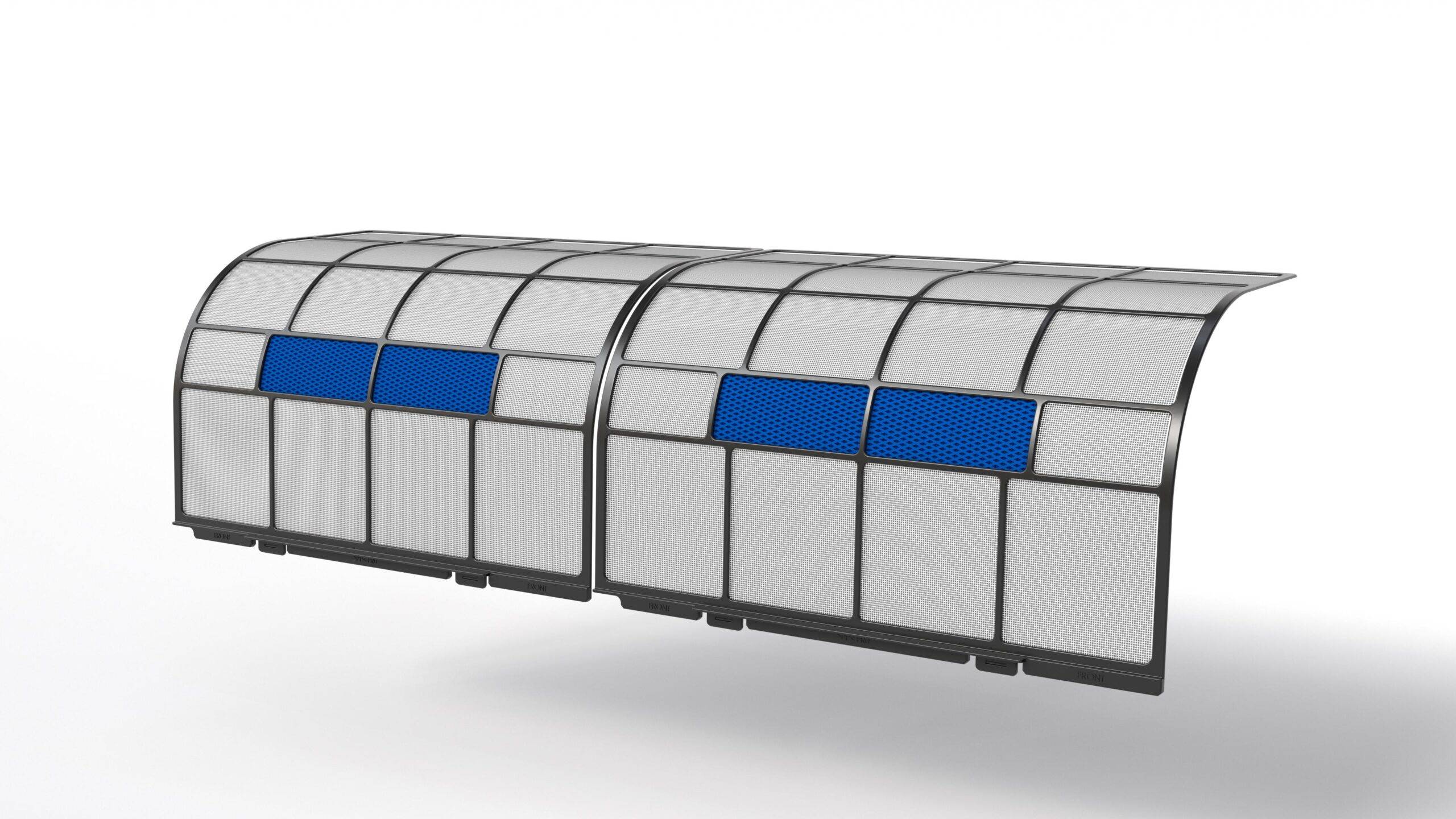

  • Breathe Healthy Air | Enjoy clean air thanks to the Ultra Pure Filter that captures harmful pollutants, the Plasma Ionizer that neutralizes odors, and the resin coating on the indoor unit element that ensures cleanliness for long-lasting performance
  • Experience the sound of silence | Enjoy absolute tranquility with just 19 dB(A) from the indoor unit (low speed) and up to 40 dB(A) from the outdoor unit in silent mode
  • Smart Features for Enhanced Comfort | Adjust, monitor energy consumption and control your air conditioner remotely via the Toshiba Home AC Control app. In addition, enjoy ultimate control, without having to get up from your seat, with simple voice commands (Amazon Alexa, Google Assistant)
  • Personalized Airflow | Create your own comfort zone with the Smart Sensing and HADA Care
  • Motion Tracking | Never waste energy cooling empty spaces again
  • WiFi activated
TOP ENERGY CLASS

TOP ENERGY CLASS

DAISEIKAI 10 ranks in the top A +++ energy class in cooling and in heating, in average zone. This results in very low power consumption in all operating conditions.

PLASMA AIR PURIFIER IONIZER

PLASMA AIR PURIFIER IONIZER

This electric air-purifying system can collect particles as small as 0.001μm and is 10 times faster than standard filters. The Plasma Air Purifier Ionizer contains a large amount of silver ions (Ag+) that have strong antibacterial and deodorizing effect. It uses a two-step filtering system, which includes both negative and positive electrical charge. The result is the absorption of dust, pollen and mold spores, creating a fresh, healthy environment, without smoke and food smell or any bad odors. This function can be switched on or off anytime by pressing PURE button on the remote control.

DIGITAL DC TWIN ROTARY INVERTER

DIGITAL DC TWIN ROTARY INVERTER

Digital DC Twin Rotary Inverter Compressor ensures a steady rotation speed and reduces any unwanted vibration. The results are unique:

  • Increased efficiency: The compressor has a particularly high efficiency at low rotational speeds and during long-running steady conditions.
  • Energy saving: Thanks to the anti-asymmetric twin-cylinder rotation, the compressor offers great energy savings and very powerful and reliable operation.
  • High reliability & low noise level: Stable performance with minimal friction loss. The ideal solution for noise-sensitive applications. The noise of the outdoor
    unit during operation is almost negligible, and at the same time it ensures double lifespan for the compressor.

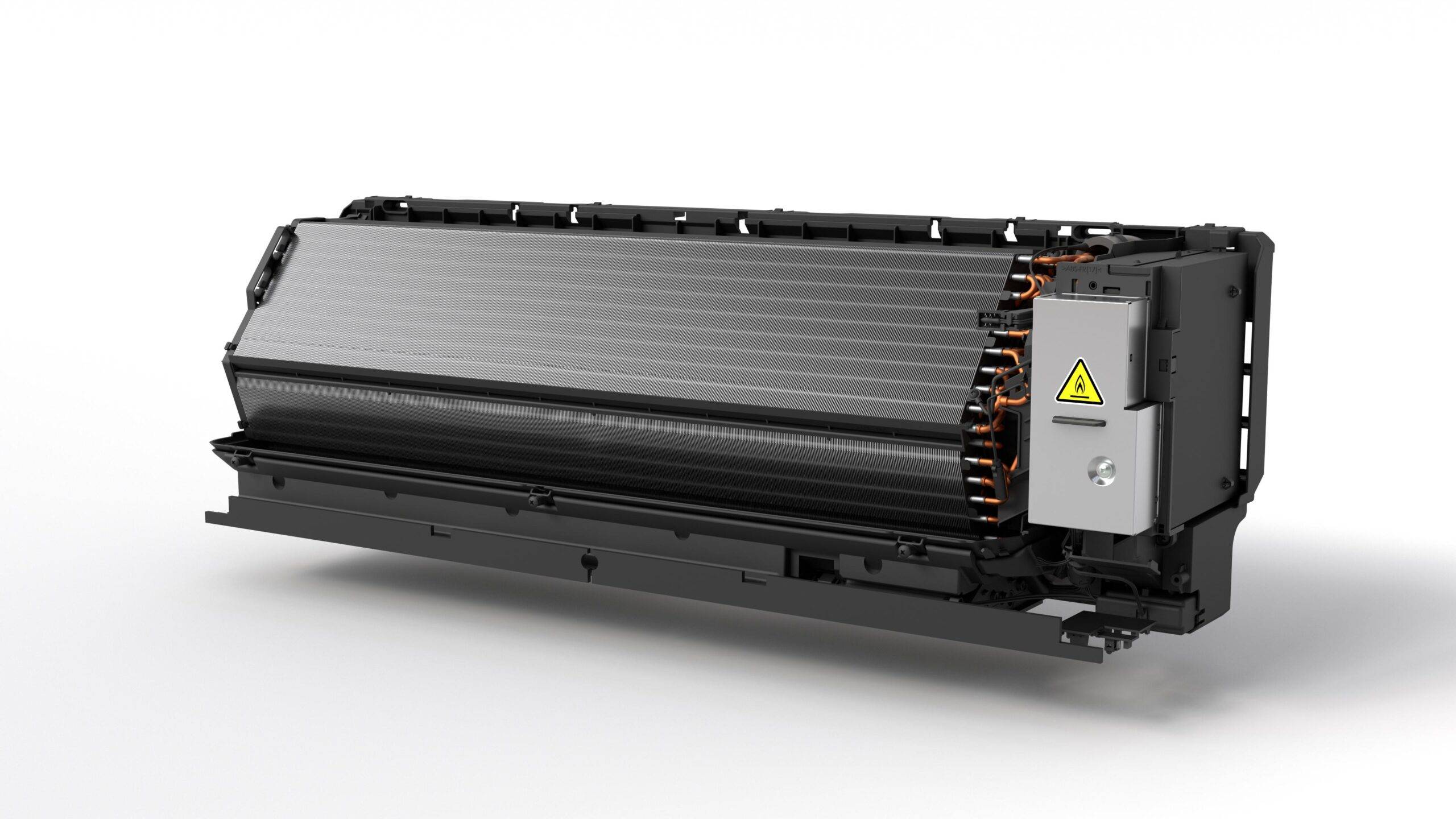

RESIN COATED COIL

RESIN COATED COIL

Experience long-lasting performance. The special coating on the heat exchanger fins prevents dust and dirt buildup, keeping the coil clean for optimal performance and air quality.

SMART SENSING

SMART SENSING

With Smart Sensing, the Daiseikai™10 uses advanced sensors to create a personalized comfort zone. Choose between indirect or direct airflow using the intuitive Toshiba Home AC Control app (available on WiFi).

MOTION TRACKING

MOTION TRACKING

Never waste energy cooling empty rooms again. Motion Tracking detects occupancy and automatically adjusts cooling or heating. When the room is vacant for 20 minutes or unoccupied for 4 hours, the Occupancy Detection function kicks in, saving energy. If high activity is detected, the Hi-Power Cooling mode automatically activates for a quick cool-down.

FIREPLACE MODE

FIREPLACE MODE

With this groundbreaking function, the air conditioner acts as a heat diffuser from other sources that may be present in the room, such as a fireplace or radiator. In this way it contributes to better heat distribution in the room, maximizing the efficiency of all the heating system available in your room, saving you money

ECO MODE

ECO MODE

The ECO mode achieves even greater energy savings of 25% to 75% as the unit adapts its function to the needs of your space. This way, the unit only consumes the energy that is really needed.

HI-POWER

HI-POWER

Just press the button on the remote control and the unit reaches the requested temperature immediately, so you enjoy the comfort you want immediately.

COMFORT SLEEP

COMFORT SLEEP

The unit will automatically adjust the temperature settings to create the best comfort levels in the sleeping hours.

SELF-CLEANING

SELF-CLEANING

The self-cleaning function reduces moisture inside the air conditioner, thus preventing mold formation. When you turn off the air conditioner, the indoor fan will automatically continue to operate to remove moisture and dry the refrigerant.

WEEKLY TIMER

WEEKLY TIMER

Weekly timer with 4 freely programmable settings per day and 7 different programs per week.

8°C HEATING MODE

8°C HEATING MODE

“8°C” button for automatic anti-frost during holiday periods, when the residence is not occupied for a long period of time.

ON DEMAND & SMART DEFROST

ON DEMAND & SMART DEFROST

With Smart Defrost mode, the air conditioner only reverses the cooling cycle when required. The unit operates for longer periods of time with excellent performance even in the most adverse winter weather conditions. At the same time, in extreme winter temperatures, the On Demand Defrost mode can defrost the outdoor unit when the user so wishes, simply by pressing 16 a button on the remote control.

AUTO RESTART

AUTO RESTART

The air conditioner will automatically restart with the previous settings after a power failure.

AUTO DIAGNOSIS AUTO DIAGNOSIS

AUTO DIAGNOSIS AUTO DIAGNOSIS

The system will perform a thorough internal check and will signal any malfunctions.

Wi-Fi Activated

Wi-Fi Activated

You can operate HAORI from anywhere and anytime, using the Wi-Fi of your residence, for unparalleled comfort and energy savings..

HOME AC CONTROL APP

HOME AC CONTROL APP

With the new Toshiba Home AC Control application you have complete control over the level of comfort you desire. 5 users have the ability to control the operation of up to 10 units from their tablet or smartphone in a simple and fast way. It also provides the ability to control the units per group for quick application of comfort conditions in selected areas. Learn more here.

7 YEARS WARRANTY

7 YEARS WARRANTY

Toshiba offers 7 years of warranty for all unit parts.

NOTE

NOTE

The manufacturer reserves the right to change the characteristics of the products, the elements and the images, without prior notice.

Outdoor Unit
RAS-10S4AVPG-E
RAS-13S4AVPG-E
RAS-18S4AVPG-E
Indoor Unit
RAS-B10S4KVPG-E
RAS-B13S4KVPG-E
RAS-B18S4KVPG-E
Cooling Capacity
0,60 - 3,50 kW
0,90 - 4,20 kW
0,90 - 6,00 kW
SEER
10,70 / A+++
9,70 / A+++
8,60 / A+++
Heating Capacity
0,65 - 5,80 kW
0,70 - 6,30 kW
0,80 - 7,20 kW
SCOP (warmer zone)
6,20 / A+++
6,20 / A+++
6,50 / A+++
Operating Range Cooling
-15 ~ 46 °C
-15 ~ 46 °C
-15 ~ 46 °C
Operating Range Heating
-20 ~ 24 °C
-20 ~ 24 °C
-20 ~ 24 °C
Sound Level
40/19 dB(A)
41/20 dB(A)
44/22 dB(A)
Refrigerant
R32
R32
R32
IDU Dimensions (mm)
293×940×257
293×940×257
293×940×257
Commercial Brochure ( Size: 258.99 KB)
Owners Manual ( Size: 6.42 MB)
Installation Manual ( Size: 6.02 MB)
