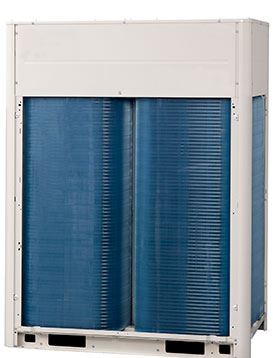

SMMS-u | MMY-MUP_HT8P-E

The new Super Modular Multi System

The expectations of a modern air-conditioning system have evolved over the past years. Engineered in Japan, SMMS-u integrates all the latest technological innovations from Toshiba to achieve top class efficiency and ensure unrivalled comfort levels.

Capacity

8 - 24 HP

Refrigerant

R410

Expansion

9 outdoor units can be combined with up to 128 indoor units. Up to 3.000 possible combinations.

Warranty

3 years

Capacity

8 - 24 HP

Refrigerant

R410

Expansion

9 outdoor units can be combined with up to 128 indoor units. Up to 3.000 possible combinations.

Warranty

3 years

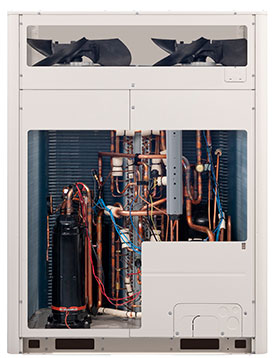

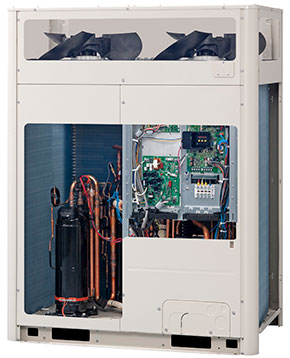

TRIPLE ROTARY COMPRESSOR

TRIPLE ROTARY COMPRESSOR

The exclusive Toshiba triple rotary compressor outstanding performances to the SMMS-u with no compromise on system reliability:

  • Large capacity
  • Wide operating range
  • Less refrigerant needed
  • Low vibration
  • Low noise
  • DLC treatment

VERTICAL TRIPLE ROTARY COMPRESSOR

9 OUTDOOR UNITS

9 OUTDOOR UNITS

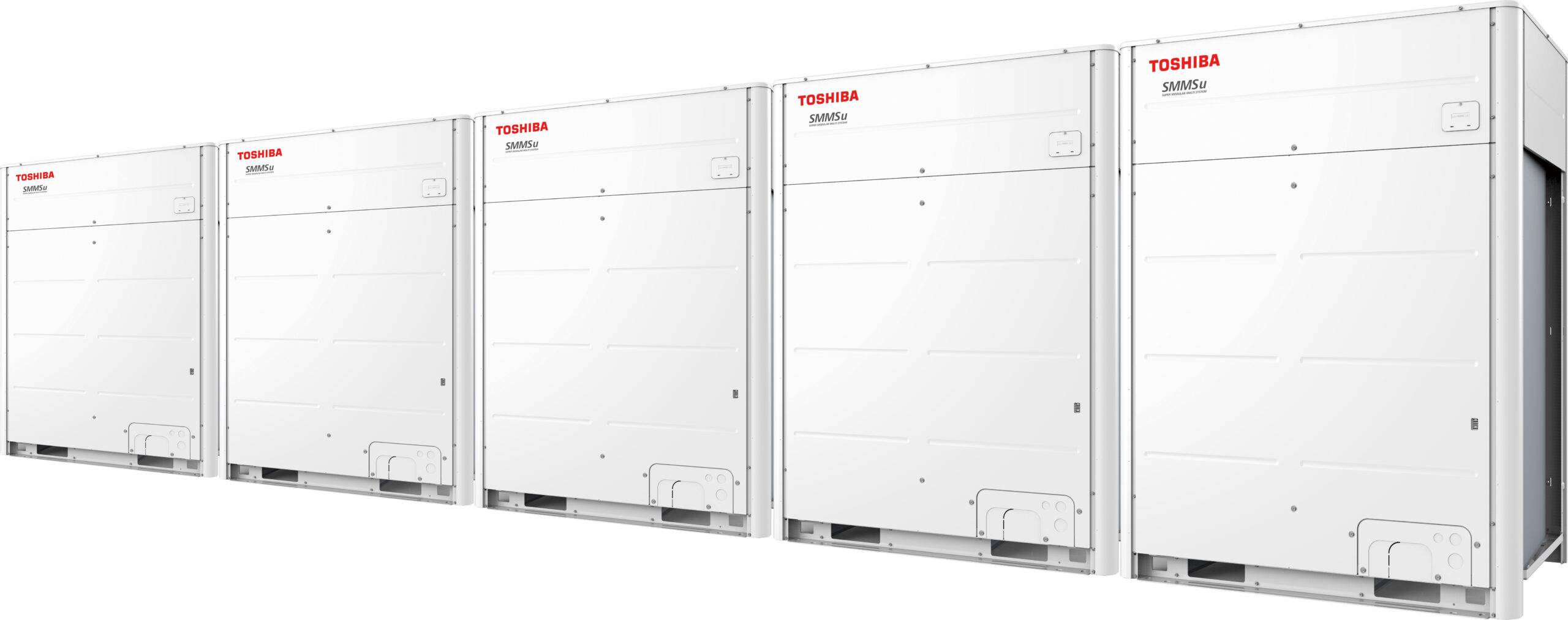

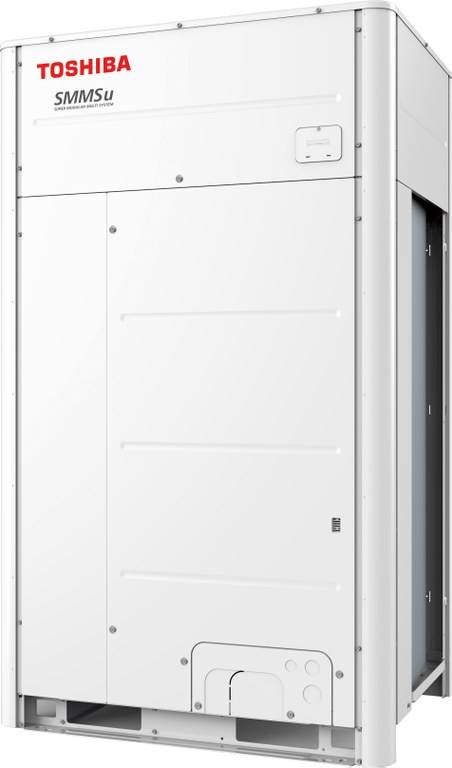

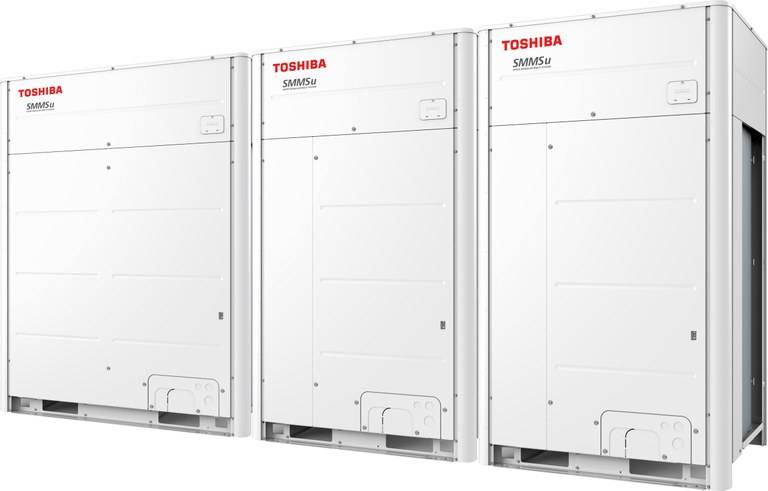

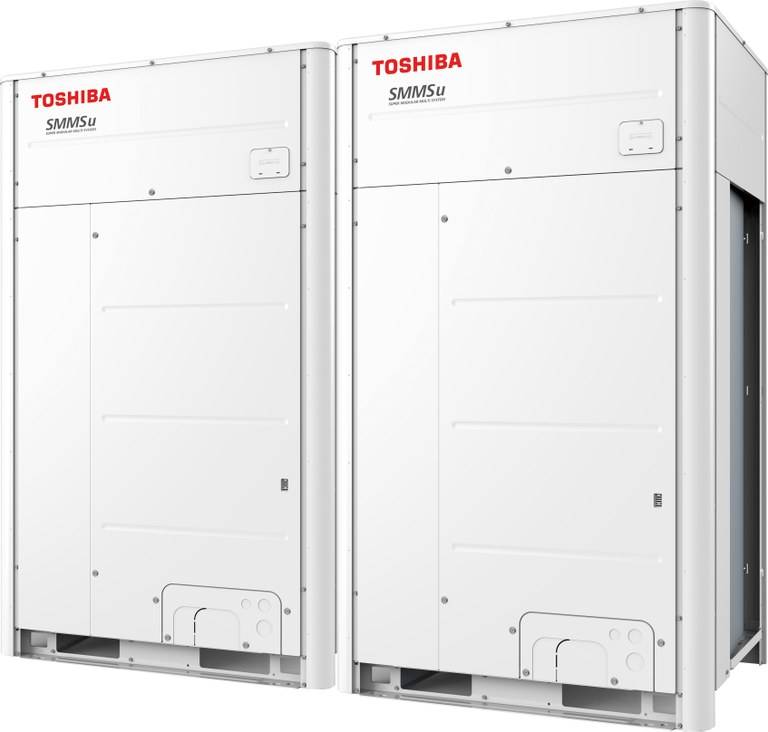

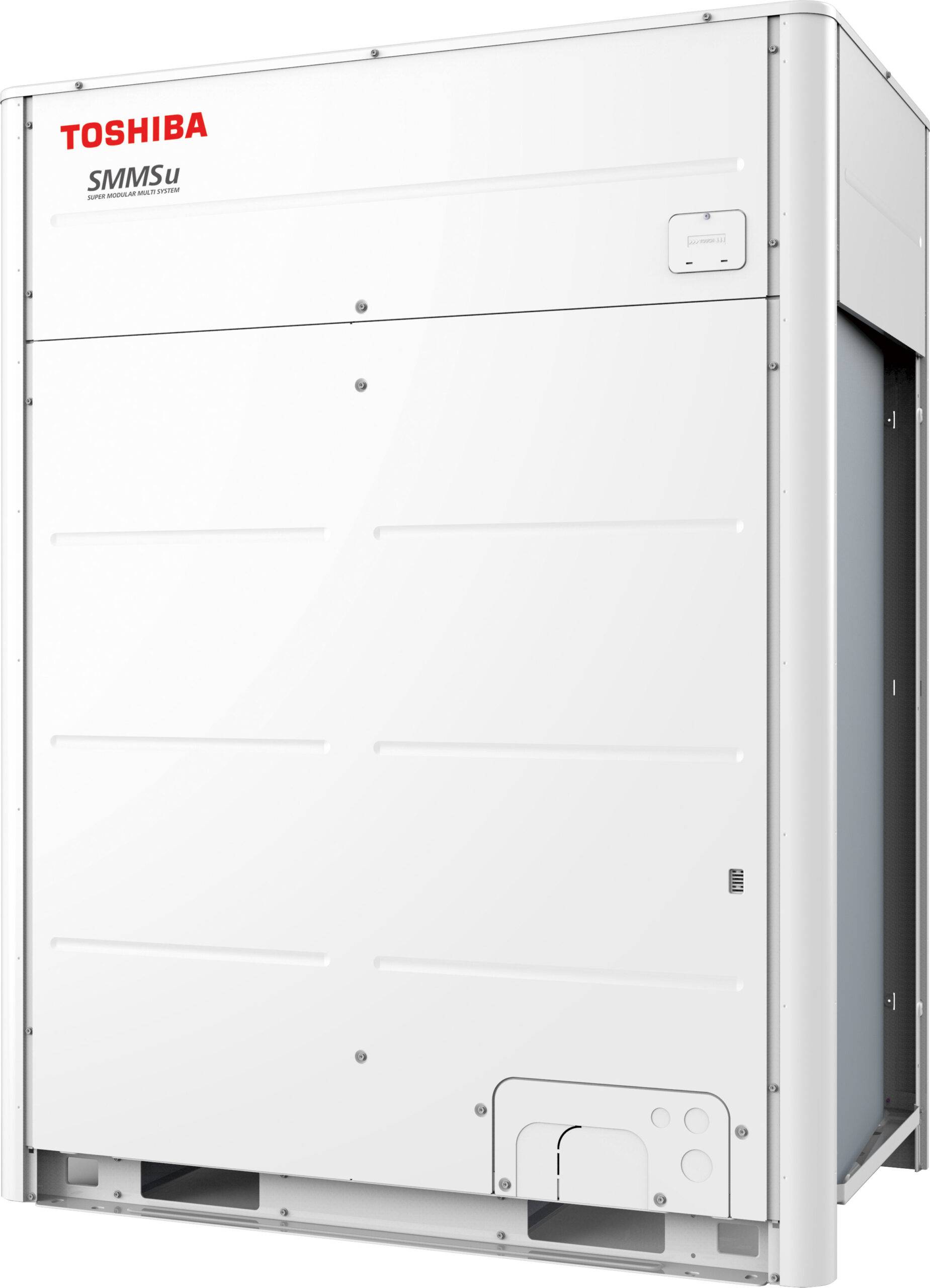

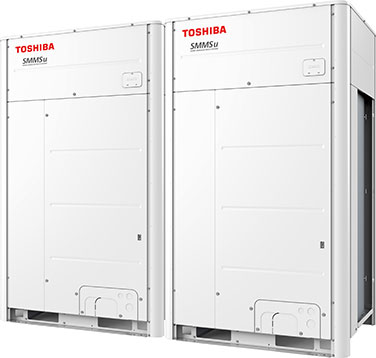

9 single modules from 8 to 24HP and up to 5 outdoor units can be combined to achieve 120HP

ENDLESS COMBINATIONS

ENDLESS COMBINATIONS

ENDLESS COMBINATIONS

Around 3.000 combination solutions can be created to meet customer requirements in terms of efficiency, capacity, refrigerant amount or footprint. Up to 128 indoor units can be connected thanks to Toshiba´s new TU2C-LINK protocol, which is bringing new perspectives in data volume and communication speed. Importantly, in order to adapt the capacity of the system to building use, the SMMS-u provides an impressive 200% diversity ratio.

TOP CLASS EFFICIENCY

TOP CLASS EFFICIENCY

TOP CLASS EFFICIENCY

Utilizing the new highly efficient core technologies results in greater energy efficiencies and performancies. SEER up to 7.7 and SCOP up to 4.8

WIDE OPERATING TEMPERATURE

WIDE OPERATING TEMPERATURE

Whatever the outdoor temperature, SMMS-u is able to operate from -25°C to +52°C.

HOT WATER

HOT WATER

Heating, cooling, fresh air and hot water production, all in one system for your residential, hotel or commercial applications.

PIPE WORK

PIPE WORK

SMMS-u innovative engineering ensures there is no longer any need to be limited by piping restrictions. The system allows a total piping length of 1,200m, with 250m permissible from the outdoor unit to farthest indoor unit. Providing even more options to consultants and installers, a height difference of up to 110m is possible between outdoor and indoor units for projects in elevated buildings.

STRONG ADAPTABILITY

STRONG ADAPTABILITY

SMMS-u integrates new features to adapt operations to local constraints with a constant target: the alliance of comfort and energy savings.

  • Split head exchanger which automatically varies depending on workload, maximising energy savings and system reliability
  • Demand control: Smart Grid ready with remote or dry contact demand control function
  • Auto backup function in case of combinations system failure
  • Rotation drive: Smart control to automatically equalise compressor operating hours
  • Balance oil circuit free. No oil pipe needed wih the new lubrication technology

WIDE CONTROL LINEUP

WIDE CONTROL LINEUP

Wireless, simplified, advanced, individual, centralized, connected, with touch screen… Toshiba is offering a large choice of control solutions all compatible with the new TU2C link protocol. SMMS-u is also compatible with Bacnet, Lonworks and Modbus MBS languages.

ADVANCED CONTROL SYSTEM

INTELLIGENT VFR CONTROL

INTELLIGENT VFR CONTROL

Mixing 0.1Hz compressor speed control with high precision pulse motor valve, SMMS-u is delivering the right quantity of refrigerant to all indoor units in demand. No extra quantity of refrigerant is compressed, only the good one. Result is a power consumption directly linked to the user demand. No more, no less.

EASY COMMISIONING AND MAINTENANCE

EASY COMMISIONING AND MAINTENANCE

  • Wireless connection using smartphone NFC technology to collect system data
  • System operation self record using link adaptor
  • Direct USB connection to get access to system data
Owners Manual ( Size: 2.80 MB)
Installation Manual ( Size: 8.06 MB)
Commercial Brochure ( Size: 2.40 MB)
