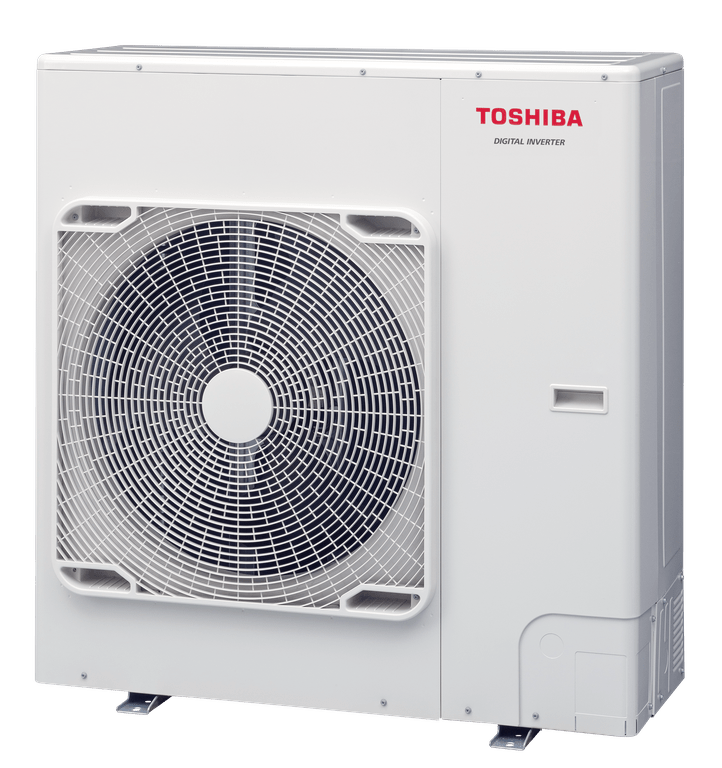

Digital Inverter GM_ATP(8)

Eurovent

Toshiba Digital Inverter brings state-of-the-art inverter technology to the commercial sector, offering considerable advantages in terms of capacity, energy savings, optimised control, lower refrigerant charge. In addition, it has the smallest physical dimensions and lightest range of outdoor units in the industry.

SCOP MAX

4.51

Capacity

2kW – 16kW

Operation

-15°C/+46°C

Warranty

5 years

SCOP MAX

4.51

Capacity

2kW – 16kW

Operation

-15°C/+46°C

Warranty

5 years

Toshiba Digital Inverter brings state-of-the-art inverter technology to the commercial sector, offering considerable advantages in terms of capacity, energy savings, optimised control, lower refrigerant charge. In addition, it has the smallest physical dimensions and lightest range of outdoor units in the industry.

Light & Compact

Light & Compact

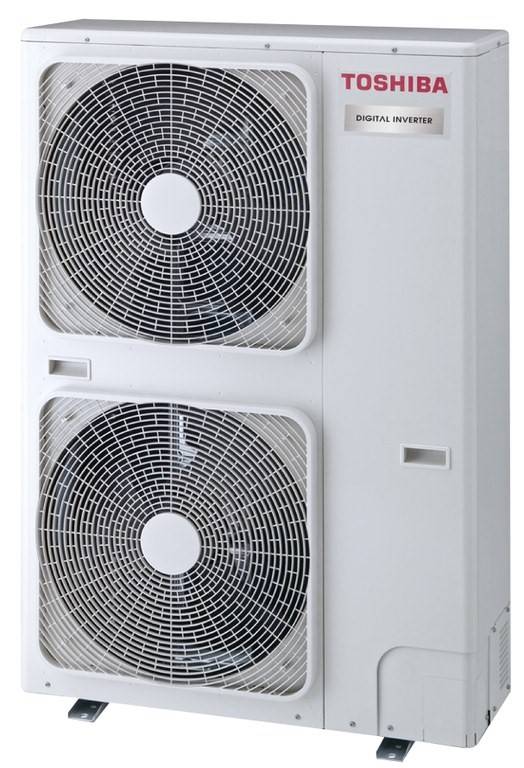

Up to 14kW in only 1.340 mm height and 95 kgr

Wide Adaptability

Wide Adaptability

  • Compatible with a wide choice of indoor units: 4 way cassette, 4-way compact cassette, slim duct, standard duct, high wall and ceiling
  • Night operation mode to minimize the outdoor unit sound as low as 33dB(A)
Efficiency & Energy Savings

Efficiency & Energy Savings

The Vector Intelligent Drive Unit (IPDU) technology ensures power limitation by 1% step between 50% and 100% load for optimal capacity control

Easy Maintenance

Easy Maintenance

  • Removable corner panels for easy access
  • Auto diagnostic function
PHYSICAL DATA OUTDOOR - SINGLE PHASE
OUTDOOR UNIT
RAV-GM301ATP-E 1 HP
RAV-GM301ATP-E 1 HP
RAV-GM561ATP-E 2 HP
RAV-GM801ATP-E 3 HP
RAV-GM901ATP-E 3.5 HP
RAV-GM1101ATP-E 4 HP
Sound pressure level dB(A) C
46
49
46
48
51
54
Operating range °C C
-15 / 46
-15 / 46
-15 / 46
-15 / 46
-15 / 46
-15 / 46
Sound pressure level dB(A) H
47
50
48
52
55
57
Operating range °C H
-15 / 15
-15 / 15
-15 / 15
-15 / 15
-15 / 15
-15 / 15
Dimensions (HxWxD) mm
550 x 780 x 290
550 x 780 x 290
550 x 780 x 290
550 x 780 x 290
630 x 800 x 300
890 x 900 x 320
Weight kg
33
39
40
44
47
68
Compressor type
DC Rotary
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
Minimum pipe length m
2
2
5
5
5
5
Maximum pipe length m
20
20
30
30
50
50
Maximum height difference m
10
10
30
30
30
30
Chargeless pipe length m
15
15
20
20
20
30
Refrigerant charging (R32) Type /Κg
R32 / 0.6
R32 / 0.9
R32 / 0.9
R32 / 1.3
R32 / 2.0
R32 / 2.1
Power supply V-ph-Hz
220/240-1-50 220-1-60
220/240-1-50 220-1-60
220/240-1-50 220-1-60
220/240-1-50 220-1-60
220/240-1-50 220-1-60
220/240-1-50 220-1-60
PHYSICAL DATA OUTDOOR - THREE PHASE
OUTDOOR UNIT
RAV-GM1401ATP-E 5 HP
RAV-GM1601ATP-E 6 HP
RAV-GM1101AT8P-E 4 HP
RAV-GM1401AT8P-E 5 HP
RAV-GM1601AT8P-E 6 HP
-
Sound pressure level dB(A) C
55
53
54
55
53
-
Operating range ˚C C
-15 / 46
-15 / 46
-15 / 46
-15 / 46
-15 / 46
-
Sound pressure level dB(A) H
57
55
57
57
55
-
Operating range C H
-15 / 15
-15 / 15
-15 / 15
-15 / 15
-15 / 15
-
Dimensions (HxWxD) mm
890 x 900 x 320
1.340 x 900 x 320
890 x 900 x 320
890 x 900 x 320
1.340 x 900 x 320
-
Weight kg
68
95
69
69
94
-
Compressor type
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
DC Twin Rotary
-
Minimum pipe length m
5
5
5
5
5
-
Maximum pipe length m
50
50
50
50
50
-
Maximum height difference m
30
30
30
30
30
-
Chargeless pipe length m
30
30
30
30
30
-
Refrigerant charging (R32) Type /Κg
R32 / 2.1
R32 / 2.4
R32 / 2.1
R32 / 2.1
R32 / 2.4
-
Power supply V-ph-Hz
220/240-1-50 220-1-60
220/240-1-50 220-1-60
380/415-3-50, 380-3-60
380/415-3-50, 380-3-60
380/415-3-50, 380-3-60
-
